O MEGA-IATE MILIONÁRIO DE EIKE BATISTA E SUA
FORMA DE AGIR NO MARANHÃO
Ronald Almeida,
01fev2017.
Blog
Ronald.Arquiteto
No período
2007-2008 a empresa MPX (do Grupo EBX, de Eike Batista) procedeu a compra do
projeto e ao licenciamento do empreendimento da UTE – Usina Termelétrica do
Maranhão, a 5 km do Complexo portuário do Itaqui / Ponta da Madeira. Tratava-se de investimento de US$
1,431 bilhão de dólares, para
implantação da UTE em duas fases de 360 MW.
Nessa
ocasião percebemos que os prepostos da MPX que tratavam desse empreendimento
bilionário se esquivavam de qualquer procedimento mais esclarecedor quanto aos
impactos socioambientais e socioeconômicos desse projeto. Reduziram ao máximo
as despesas com produção de informações e limitaram suas ações de transparência
ao mínimo exigido pelas autoridades locais, o que de modo geral é sempre o
mínimo do mínimo e a população que se dane.
No
contrafluxo da estratégia MPX de despesas mínimas com a transparência do
projeto UTE-ITAQUI, em março de 2008 a revista MAGAZINE, segmento de luxo,
publicou bombástica matéria de capa com o seguinte título:
“Conheça o iate do brasileiro mais rico do mundo Eike Batista”
Esse belíssimo
iate todo em chapa especial de alumínio, um PERSHING 115 (grupo Ferretti) custou
a bagatela de 17, 6 milhões de Euros, (preço de fábrica na Itália em
2008), sem considerar os impostos de importação de tão sofisticada embarcação
que desloca até 133 toneladas a 52/55 nós!!
Somente
para encher o tanque dessa supermáquina com 16.500 litros (16,5 m³) de diesel o proprietário tem que desembolsar o preço de um carro médio da ordem de R$ 50 mil reais!!!
E ter uma tripulação de plantão com pelo
menos 6 homens, o que custa em média cerca de R$ 50 mil mensais. E pagar um
aluguel de marina da ordem de R$ 10 mil.
Como
esse mega-iate foi um dos bens arrestados pela Justiça Federal em 2015 em função
da lamentável quebra do Grupo EBX publicamos hoje alguns detalhes técnicos e
fotos dessa maravilha náutica, uma verdadeira Ferrari ou Lamborghini (como
prefere EB) dos mares, hoje avaliada em cerca de R$ 85 milhões.
Posteriormente publicaremos outros
detalhes.
Boa navegação.
Ronald Almeida
PERSHING 115
Alguma vez ficou sem
palavras? Prepare-se pois para além de ficar sem palavras, vai também ficar com
falta de ar… Quando chega a hora de falar sobre o Pershing 115 é difícil
arranjar palavras que consigam descrever toda a sua imponência. Esqueça tudo o
que viu até agora, porque não há nada igual ao Pershing 115. Não é todos os dias que se navega a 52 nós a bordo de 35,37 metros de
inovação, conforto e estilo...
Nem
todos o conseguem e a Pershing foi sem dúvida a primeira a consegui-lo. Veja as
imagens, elas falam por si só....
|
Comprimento
|
35,37
mt.
|
|
Boca
|
7,20
mt.
|
|
Motorização
|
2 x
3700 hp MTU 16V 4000 M90 Waterjets + Turbina a gás TF 50 (opcional)
|
|
Velocidade
Máxima
|
52
Nós
|
|
Velocidade
Cruzeiro
|
48
Nós
|
|
Lotação
|
22
|
|
Autonomia
|
490
mn
|
|
Depósito
Combustível
|
16.500
lts.
|
|
Depósito
de água
|
3.000
lts.
|
|
Camarotes
|
4
|
|
Cam.
Tripulação
|
3
|
|
Casas
de banho
|
5 +
3 (trip.)
|
|
PREÇO
DE FÁBRICA [em 14maio2008]
|
17,6
milhões de Euros [= R$ 45 milhões em maio2008]
|
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
PERSHING 115: O IATE QUE EIKE BATISTA COMPROU EM
2008
Fonte: Blog Marina do Alemão
[sem data; circa 2009?]
http://marinadoalemao.com.br/blog-da-marina/curiosidades-nauticas/113-pershing-115-o-iate-de-eike-batista
‘Spirit
of Brazil’ foi o apelido dado ao Pershing
115, um modelo de iate italiano produzido no estaleiro The Pershing S.P.A, que
deixou a Marina dei Cesari em Fano –
Itália, com destino ao Rio de Janeiro para propriedade do empresário
brasileiro Eike Batista.
A
versãostandard da Pershing 115′ é motorizada com dois MTU diesel
totalizando 7400hp, combinada com a propulsão de dois hidrojatos Kamewa Rolls Royce, que garantem
velocidade máxima de aproximadamente 40 nós.
Em especial, uma significativa inovação que o
torna superior a todos os outros superyachts é que ele foi reforçado com uma
nova geração de turbina movida a gasolina, a Vericor TF 50, capaz de criar a potência de 5100hp, com propulsão
de hidrojato central.
O Pershing 115 possui 35m de comprimento (115 pés), em
analogia, esta embarcação tem um espaço interno equivalente a um “modesto”
apartamento de 900m2.

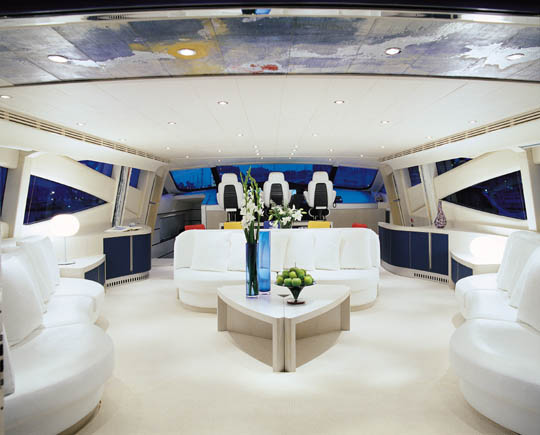

São várias as configurações que caracterizam este
novo iate. Uma madeira muito especial, carvalho silvestre frisé, foi usado
em todo o mobiliário. O interior do iate é iluminado por LEDs para criar
ambientes mais convidativos e reduzir o calor gerado pela iluminação
tradicional.
A exclusiva decoração, inteiramente desenhada
pela Fendi, merece ser mencionada. A grife italiana retrata o modo de vida
ideal e sofisticado para aproveitar as áreas de estar – ambientes refinados e
aconchegantes e a necessidade de evocar o luxo elegante, criam a combinação
perfeita deste verdadeiro ícone do estilo made in Italy.
O interior sugerido pela Ferretti para o Pershing 115 conta
com três suítes que combinam detalhes em madeira e um carpete claro, com
aparência similar à areia.
Além das acomodações, há ainda uma cozinha de aço escovado. O
barco conta com sistema de som e vídeo, que inclui sistema de MP3 e TV LCD de
67 polegadas na sala.
Veja algumas fotos do Pershing 115:
Para
pernoite, a capacidade da embarcação é de oito passageiros. Já o espaço para
curtir durante o dia, que conta até com dois jet-skys que podem ser armazenados
na proa, acomoda com conforto até 20 pessoas.
O Preço
estimado do Pershing 115 é de US$ 17 milhões.
Para
mais informações, confira o vídeo abaixo:
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
COMO DESCOBRIMOS O PREÇO DE FÁBRICA DO MEGA-IATE PERSHING 115: PERGUNTANDO DIRETAMENTE AO ESTALEIRO NA ITÁLIA!!
De: Ronald de Almeida Silva <ronald.ouvidor@gmail.com>
Para: info@pershing-yacht.com,
Cc: Ronald Almeida Silva <ronald.ouvidor@elo.com.br>,
Data: 11 de maio de 2008 02:24
Assunto: PERSHING 115 GAS
TURBINE - BASIC PRICE TAG
Dear Mr. FABRETTI,
I am writing an
article about the outstanding Pershing 115.
Please, what is the basic PRICE tag of a
P115 whith the following motorization:
2 x 3700 Mhp MTU 16V 4000 M90; 2720 Kw with waterjets Kamewa 71 SII+ gas
turbine VERICOR TF 50 with one waterjet booster.
Cordially yours,
Ronald de Almeida
Silva
Architect &
writer
Rua Sebastião Archer, 17, CEP 65065-480
São Luís City, Maranhão, BRASIL
RESPOSTA DO ESTALEIRO PERSHING SPA/ITALY
 |
Ronald
de Almeida Silva <ronald.ouvidor@gmail.com>
|
IACHT PERSHING
115 GAS TURBINE - BASIC PRICE TAG
Laura Vanessa Carboni <Laura.Carboni@pershing-yacht.com>
14 de
maio de 2008 10:37
Para: ronald.ouvidor@gmail.com
Dear Ronald,
the basic price of the Pershing 115'
with 2 x 3700 Mhp MTU 16V 4000 M90 2720 Kw with waterjets Kamewa 71
SII is = 13.900.000,00 Euro
+ gas turbine VERICOR TF 50 with one waterjet booster = 3.700.000,00 Euro
So the total is
= 17.600.000,00 Euro
Can you be so kind to inform me about the
magazine you write this article for?
I would love to receive the mediakit, and will
it be possible for you to send me a copy of the magazine once the article will
be published? Please confirm.
Thanks a lot and best regards
Laura Vanessa Carboni
Press Office & Advertising
Pershing S.p.A.
Via J. J. Pershing 1/3
61037 Mondolfo (PU); Italy
Tel.: +39 0721 956211 / Fax: +39 0721 956289
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
MOTOR-BOAT : SUPER-YACHT PERSHING 115'
Pershing Group - Ferrettigroup
Whatever tire context, the harmony of this maid-yacht's dimensions never
fails to amaze and when the craft is at sea it becomes almost impossible to
guess its real size. The sense of proportion and design in every part of the
craft's concept has ensured that it is elegant, comfortable and stylishly
streamlined. The Pershing 115'was an exciting challenge: yacht designer Fulvio De Simoni.
The Pershing and
Ferretti Group Engineers and all the project staff worked passionately together
on it as a team for 18 months.
PERSHING 115 Co.d.a.g.
Article selected from our quarterly magazine dedicated to the largest
and most luxurious boats with information, interviews, technical articles,
images and yachting news
How many shades of meaning can the term exclusive
have? Several, though the etymology of the word leaves little space to
interpretation. Owning a thirty-five-meter megayacht, in fact, offers by itself
a good dimension of its meaning. How many could own her? Even though the market
of 24-meter and longer yachts is expanding all over the world, the Owners are
still an élite, a limited number of fortunate people who can surround
themselves with exclusive objects. So, owning a Pershing 115 is by itself
high-class, destined to the few, but among these there is someone who demanded
more. An Owner wanted to customize this privilege by requesting an important
technical modification to his yacht, which strengthened the brand name turning
the yacht even more exclusive.
TECHNICAL
DATA
I.
LOA (ISO
8666): 35.07 m
II.
Hull
length (ISO 8666): 32.67 m
III.
Length at
the waterline with full load: 28.13 m
IV.
Beam
[boca]: 7.20 m
V.
Draft at
full load [calado]: 1.35 m
VI.
Light
displacement [deslocamento leve]: 114t
VII.
Full boat
displacement [deslocamento carregado]: 133.6 t
VIII.
Maximum
passengers capacity: 22
IX.
Engines:
2 x 3,700 hp; 16 V; 4000 M; 90 MTU + 1x5,000hp TF 50 Vericor Power Systems gas
turbine
X.
Estimated
maximum speed: 55 knots.
For further information, contact Pershing: viale Marche 2/4; 61030
Castelvecchio di Monteporzio (Pesaro, Italy); tel. +39 0721 956211; fax 0721 955784; website
www.pershing-yacht.com; e- mail address: info@pershing-yacht.com.
|
|
That is how the Pershing 115 with gas turbine was
born. The 35- meter Open mega-yacht
is powered by a mixed engine, defined as combined Diesel And Gas turbine
(CODAG), made up of two conventional engines/water jets as in the standard
version (two MTU 16V 4000 M90 engines
totaling 7,400 hp and/plus KaMeWa 71 SII water jets) with in the middle a Vericor Power Systems TF 50 gas turbine
specific for marine propulsion, with Maag transmission and a 56BII Kamewa water
jet offering an extra power of 5,000 hp capable of significantly changing the
speed of this "large" yacht.
So, while the standard version reaches a maximum speed
of 42 knots this yacht may reach a speed of 55/56 knots - this speed is estimated for at the moment the yacht
is still being fitted out in the yard. This is not an absolute innovation for
there are vessels, including Pershing ones not only destined to the pleasure market,
with gas turbine engines.
The exclusiveness of this yard's flagship version that
deserves special attention is the installation of both types of engine, the
traditional diesel one and the gas turbine with water jets.
On this matter we interviewed Tilli Antonelli, the Pershing President and Naval Engineer ANDREA
FRABETTI, the vice-president of
Ferretti Engineering, the group which includes all the trademarks of the
Forlì-based company contributing to boat design.
[1] First of all, what drove the yard
to build this "fast" version of the 115 footer?
When I first thought of the 115 footer, said Mr
Antonelli, I considered that this model should have faster versions than the
standard one, eventually with three conventional engines or, why not, even with
a gas turbine. Because of this, we requested the designers, to create a hull
with adequate size and scantlings, capable of supporting exceptional stress and
an engine room large enough for power upgrading. The "gas turbine"
solution is potentially capable of totally changing the type of yacht, greatly
increasing speed and sensations. In this way an Owner may have his yacht
without waiting a year; the changes can be easily made because they were taken
into consideration in the early design phase. Thanks to this forethought, when
a client asked for a faster Pershing 115 for himself it was not difficult to
satisfy his request.
[2] How was that done, did you just
install the gas turbine?
That was done without making the slightest change to
meet the client's request on a yacht that had already been conceived for this
solution. The waterlines, the scantlings, the engine room, the interior layout
remained the same. We just slightly, almost imperceptibly, moved aft the hull's
center of gravity and this is not a negative feature for a boat destined to
navigate at high speed.
[3] As fuel consumption would
definitely be higher, were you forced to install greater fuel tanks?
No, the standard version has tanks for a total
capacity of 16,000 liters
because we anticipate or consider that the gas turbine would not be used all
the time to avoid high fuel consumption. Others developed a model that
exclusively uses gas turbines; even though extra tanks may be installed, this
type of propulsion greatly penalizes the boat's range, limiting the use of the
yacht due to her high operating costs. Of course, even our solution has high
operating costs and a reduced range if the yacht navigates at maximum speed,
but how many times will this happen? When will the Owner really want to navigate
at maximum speed? In our opinion the maximum speed would only be a percentage
of navigating time. On the basis of common experience, the rest of the time,
cruises are done at a cruising speed that for this type of yacht would be
approximately 37/38 knots. At this
speed, if the yacht only uses the MTU engines, consumption is absolutely in the
average, while at maximum speed consumption is quite high. In this perspective,
we calculated a range of 400 miles . With the
other solution, with the same hull and the same cruising speed, range would be
drastically reduced, almost 50 per cent. In our model, the turbine is not
always on, but it is switched on when the boat is already sailing at 42 knots
propelled by the 3,700-hp MTU engines. Then, by simply pressing a button, the
starting process of the gas turbine is on and after thirty seconds additional
power is generated.
[4] What is the approximate fuel
consumption with the gas turbine on?
2,700/2,800 liters per hour
[5] What does actually occur when
"I push the button"?
Simplifying, I can say that everything is under the
control of a remote black box where electronics regulates the optimal operation
and management of the turbine. This considerably facilitates its use with the
simple pressing of the above-mentioned button and the operation of an
additional lever similar to the one used with diesel engines. By pushing the
button, a sequence of automatic actions starting the turbine engine shaft is
initiated. When this shaft reaches an "x" number of rounds and a
given air pressure is created inside the combustion chamber, thirty small spark
plugs produce sparks all along the inner circumference of this chamber. At this
point, fuel at high pressure is injected and when it vaporizes, it burns using
pressurized air as combustive starting the turbine. If we measure the turbine
power in percentage terms, the minimum is around 42% while the maximum is
around 97-98% even if the turbine may produce up to 105% of its nominal power
for just a brief moment.
[6] How can this extra power of 5,000
hp be controlled?
Simply by using the lever, as is the case of any
engine. In this way one can request the turbine to supply the exact amount of
power - little, much or the maximum.
[7] Does this third booster
participate in steering?
No, it is just used as power booster. Steering is done
simply with the two lateral water jets of the MTU engines. The installation of
three water jets was a precise and a well-considered technical choice that, as
opposed to others using mixed systems based on surface propellers/water jets,
makes the vessel less influenced by weight and with a definitely more uniform
and efficient lift. Calculations showed that when the vessel sails at maximum
speed, each MTU/Kamewa combination contributes with a trust of two tons to the
original overall lift of 13 tons greatly facilitating steering.
[8] Who developed the electronics
governing this system?
We preferred to use products of one single supplier: MTU. We managed the fine-tuning of
different parts with electronics.
[9] What type of maintenance requires
the turbine?
It must be protected from sea sprays, from the mixture
of water and salt sprayed by the wind that can enter the turbine's suction
ducts. In any case, the system should be washed from time to time, with
freshwater and sometimes with solvents and this operation should always be
carried out with freshwater after sailing in rough seas.
[10] Mr Frabetti, how did the
Ferretti Group's engineering expertise contribute to all this?
We carried out the project of the hull offering
maximum support to Pershing, as we always do with all Group's associates.
According to Mr Tilli Antonelli's indications, in the 2002, we created a hull
with waterlines offering high performance both at 40 knots as well as at 55. In addition to the
normal design carried out with the computer, which, thanks to modern techniques
and data collected in time from our experience, is extremely reliable, we went
to Sweden, where we worked in a ship model testing basin side to side with
Kamewa technical experts, refining the hull. We mainly worked on the underwater
areas subject to the pressure generated by high speed, in the area of the water
inlets of jets. Studying the inclination at which these inlet ducts must be
installed, for example, may seem not important, nevertheless it is a function
of the estimated speed of the vessel, of the specific needs of the type of pump
to be installed as well as on the trim the vessel will have under navigation.
This, in turn, depends on the center of gravity, therefore also on the design
speed or speeds. Because of this we modified the inlets inclination in the
55-knot version for better performance this indicates that we took just small,
yet very efficient, hydrodynamic modifications, which nevertheless improved the
overall performance. We refined aspects that had been contemplated since the
beginning, when we were working in the ship model-testing basin with Kamewa
experts, and we developed them according to Mr Antonelli's concepts. He did not
want the fastest hull ever, rather a yacht that even at maximum speed could
offer good seakeeping abilities, great comfort and above-standard safety: the
essence and epitomes of the trademark. We tried to satisfy him by designing
hull and structures according to his request. When we were told to design a
Pershing 115 version with turbine and water jets we did not have to work hard.
Since we believe that every type of hull is made for a given type of engine, at
least we did not have to redesign anew the boat, as we generally do. Even
though we chose the water-jet propulsion for this version, the design of the
slower version might apply, if it were not so, we would have to completely
redesign the hull. This solution would have been more convenient rather than risking
building a 115 footer that would not meet the Pershing standards or, worse,
that would not navigate properly. As we do own the necessary technology to
drastically reduce the time that goes from the design phase to the faithful
realization of a new mold, we prefer losing some time rather than risking a
flop.
[11] Then, even though the boat has
not yet been launched, you have confidence in her seakeeping abilities, her
speed.
I can say that we designed the yacht propelled by two
3,700 hp MTU engines with the speed target of 41 knots. After model tests with
a seven-meter model, that is, in a 1:5 scale, this speed was confirmed for the
completed ready-to-sail yacht. On the first effective sea trial, the center of
gravity, trim and seakeeping abilities at 42 knots were the same as the
estimated ones. Frankly, no one ever has a sound sleep before sea trials,
nevertheless, all results, demonstrating the validity of the design, allow us
to have confidence in this new and faster version.
[12] Gas turbines preferably need
pure and cool air as the one found in the mountains. How did you solve all the
problems related to marine propulsion?
As for the use of air that is not cool, like the one
existing above the sea surface, the engineer solved this: the loss of efficiency
that this situation involves was calculated. How should the air be cleaned?
This was a good challenge. First of all, the turbine needs to be fed with the
right amount of air and for this we created extra openings that do not modify
the hull's aesthetics and which open as soon as the above-mentioned button is
pressed, thus avoiding lack of air pressure in the engine room. The air that
due to speed enters in them is conveyed to special filters that clean it from
impurities. The vapor-like brackishness mixed with air and water, is collected
by these filters and cleaned thus preventing it from reaching the turbine
mechanisms. Do not think of sponge-like filters, they rather resemble a winding
path, generating a sort of Venturi effect, in which particles, in this case the
impurities, are trapped knocking against the ducts' surface. After this, the
air that is introduced in the turbine, at a temperature of 40/50° Celsius, is heated to 500° Celsius inside the burner.
The main challenge was to drastically reduce the temperature of the exhaust gas
to 70°/80° Celsius in a short exhaust hidden under the aft platform. We carried
out fluid dynamics research studies for checking how the hot gas jet behaves
inside the duct and whether it cools down evenly, without temperature peaks.
Thus we designed a water-cooled exhaust, which acts on the gas in a uniform and
constant way; it seems very efficient. Then we added "traps" to
prevent the water from flowing backward from the exhaust to the turbine,
something that could eventually occur with a sudden slow down and that would be
potentially damaging for the system.
At this point, we would like to refer the reader to a
next issue of Superyacht. By then, we should have had the possibility of
getting on board of this new version of the Pershing 115 and of describing the
sensations offered by the gas turbine. For the moment, we report below the
description of the interiors of this flagship designed by Fulvio De Simoni, a consolidated name of Pershing yachts.
There are several stylistic elements worthy of
distinction in the Pershing 115 layout such as the open-air dinette on the bow
area, with foldaway table and Bimini top, the exclusive and innovative sundeck
and the large cockpit that may be used night and day.
The day area is divided into four separate sections: a
relaxation area with three C-shaped sofas; a dining area with extendable table
that seats 12; the navigating deck which can become a pilothouse for the
master's exclusive use; and, finally, an intermediate deck that makes it
possible to exploit to the maximum the volume beneath the deckhouse, consisting
of a room with a private study, a TV area and a day head.
The night area consists of a VIP stateroom in the bow, two guest cabins with twin beds and the full
beam master stateroom with two ensuite bathrooms. The crew quarters are
aft. They have independent access and include the galley, a crew dinette and
three twin cabins. The engine room can be accessed directly from here.
Aft, there is a fully fitted garage for launching and
hauling of a tender and eventually, of two PWCs. The Pershing 115 has all the
distinguishing characteristics of the Pershing yard, such as innovation,
maximum comfort throughout, high performance and original design.
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
FOTOS DA REVISTA MAGAZINE [março/abril 2008]
Nenhum comentário:
Postar um comentário
